Description

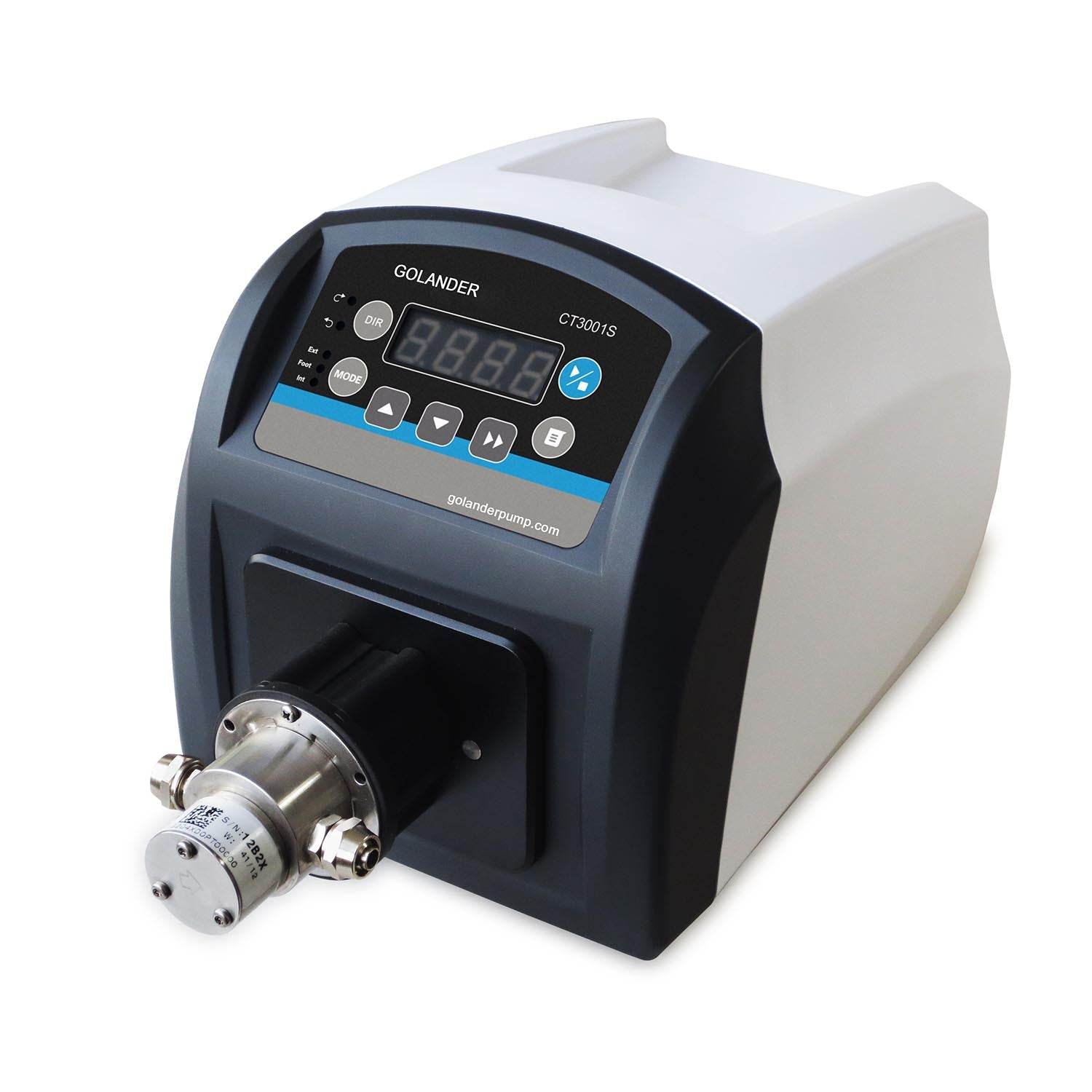

micro gear pump CT3001S Variable-Speed Micro Gear PumpFunctions and Features Suitable for transmission high viscosity liquid and high pressure application Transfer liquid without pulse; low noise Magnetic coupling for easy maintenance Brushless servo drive, high efficiency, no maintenance necessary Display and adjust flow rate Time dispense function External signal to control start stop, direction, and rpm speed MODBUS RS485 communication interface ready ABS plastic case Switching power supply for either
Functions and Features
- Suitable for transmission high viscosity liquid and high pressure application
- Transfer liquid without pulse; low noise
- Magnetic coupling for easy maintenance
- Brushless servo drive, high efficiency, no maintenance necessary
- Display and adjust flow rate
- Time dispense function
- External signal to control start/stop, direction, and rpm speed
- MODBUS RS485 communication interface ready
- ABS plastic case
- Switching power supply for either 110V or 220V
Specifications
| Pump Head | MG204, MG209, MG213 (PEEK or PTFE) |
| Communication | RS485, Modbus communication protocol |
| Display | 4-Digit LED |
| Direction | One Direction |
| Speed Range | 300-3000 rpm |
| Liquid Viscosity | ≤200cSt |
| Particle Size | ≤10um |
| Dispense Mode Time | 0.1-999 seconds |
| Speed Resolution | 1rpm |
| Operation | Keypad, Footswitch and Hand Dispenser (Optional) |
| External Control | 5V (12V/24V optional) to control Start/Stop, Direction 0-5V (0-10V,4-20mA optional) to control speed |
| Power Supply | AC 90-264V 50Hz/60Hz |
| Consumption | <150W |
| Working Environment | Temperature 0-40°C, humidity<80% |
| Dimensions (LxWxH) | 342x180x198mm (13.5x7.1x7.8inch) |
| Drive Weight | 3.3kg (7.3lbs) |
| IP Standard | IP31 |
CT3001S Suitable Pump Heads
| Pump Head | Gear Material | Max Output Pressure | Flow Range | Liquid Temperature |
| MG204 | PEEK | 0.8MPa (116psi) | 90-900mL/min | -45-120°C |
| MG209 | PEEK | 0.8MPa (116psi) | 180-1800mL/min | -45-120°C |
| MG213 | PEEK | 0.3MPa (44psi) | 270-2700mL/min | -45-120°C |
